2002 LM 6000PC SPRINT 47MW 60 Hz, 13800 USA

Item number: 68041

2002 LM 6000PC SPRINT 47MW 60 Hz, 13800
Equipment: Two (2) General Electric LM6000 Gas Turbines can be purchased at 49 000 000$ each.
EXW USA

TECHNICAL INFORMATION:

GAS COMBUSTION TURBINES
Manufacturer: General Electric
Model No: LM6000 PC Sprint
Capacity: 44 MW
Year Built: Used
Comments: Simple Cycle, natural gas
Note: LPT on Unit #2 requires minor work. Cost included in price.
Overhaul was done in 2023
Hours & Starts: (to be updated)

Unit 1: Total Hours: 32,360.3 Attempted Starts: 3,370 2023 Hours: 2,679.5 2023 Starts: 127

Unit 2: Total Hours: 35,189.2 Attempted Starts: 3,544 2023 Hours: 1,723.2 2023 Starts: 104

GENERATORS
Manufacturer: Brush
Model No: BDAX 7-290ERJT
Year Built: 2001
Output: 71,176 kVA
Voltage: 13,800
Amps: 2,977
P.F.: 0.85
Phases: 3 @ 60 Hz

Serial Numbers:

CONTROL CONTAINERS
Manufacturer: General Electric
Containers: 2

AUXILIARY TRANSFORMERS
Manufacturer: Square D
Model No: Class AA/FA 3-Phase 60Hz
Year Built: 05/2002
Output: 2500/3333 KVA
Voltage: 13.8 kV-480/277 V

AUXILIARY EQUIPMENT
Fire Equipment
Water Supply Equipment
Fin-Fan Coolers
Air Dryers
Turbine Stacks (2)

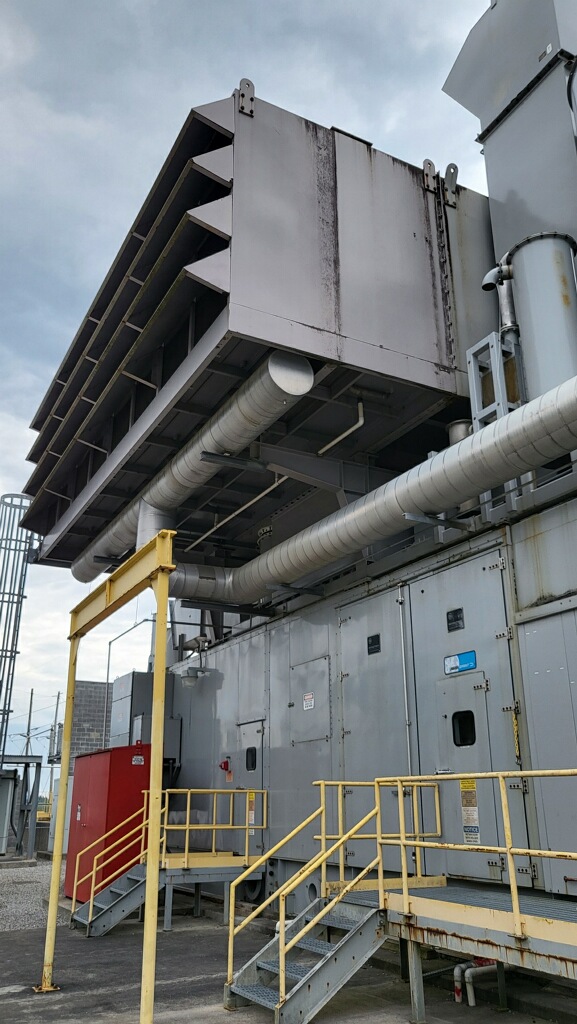

Turbine Intake Structures
Underground Piping, Conduits and Wiring may be removed or left by Purchaser

EXCLUDED EQUIPMENT (for clarity)
Main GSU Transformers and Main Transformer Switchgear
Building Structures
This was a peaking plant which was used very little. At expiration their contract was not renewed.

Price: 49000000.00 $

If you are interested in buying this stock offer or you have any questions feel free to contact us.
