BTC Power DC Fast Charging equipment spanning multiple generations, all available for immediate purchase. This includes early-generation dispensers, Gen3 power cabinets and Gen2/Gen4 split-system cabinets.
With regards the BTC EV Charging Station
You are are buying split systems

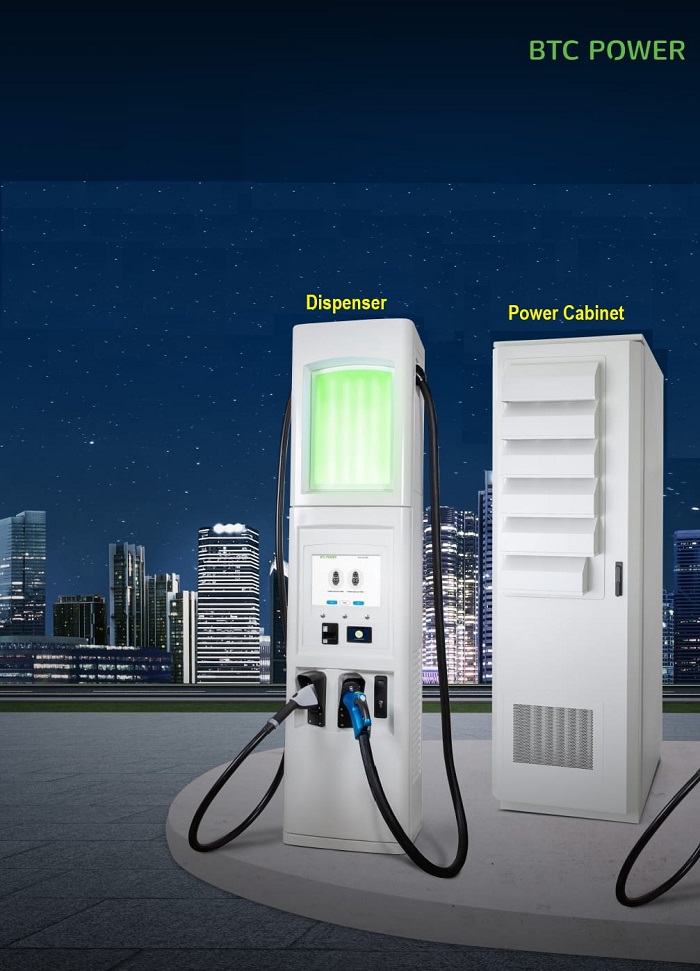

Which consists of Power Cabinet + Dispenser (See Attached Power Cabinet + Dispenser Picture)
*Please note one unit of the Power Cabinet can operate more than one unit of the Dispenser
The units were manufactured in 2023 so some of these units may have one month or less left on the manufacturer warranty
But additional warranty can be purchased separately.
These Units were purchased from direct from Shell Oil and All are New, & Sealed OEM Equipment
Shell have paid over 60 000$ for each of the Cabinets and the Dispensers
in other words the complete system cost them over 120 000$
Our offer is as follows
• 469 Dispensers
• 376 Power Cabinets
• 469 Credit Card Reader
We are willing to purchase 469 Credit cards reader... as the equipment does not come with credit cards reader and they will be provided to the buyer at the time of purchase and can be easily plugged in and installed when buyer is installing his/her equipment on his/her lot

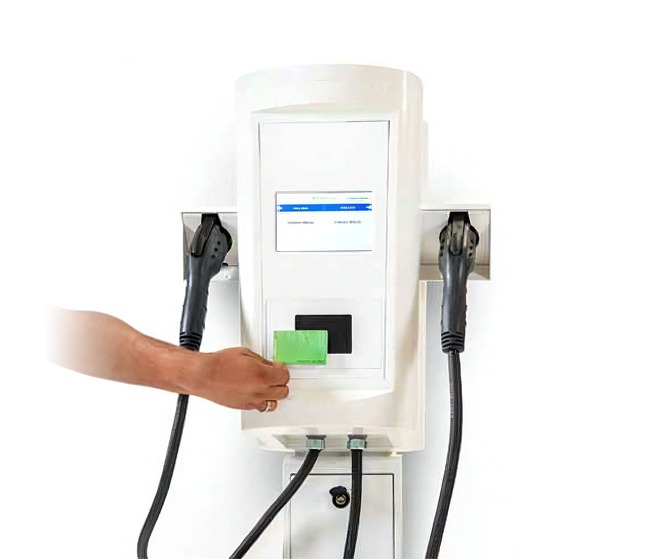

see attached Picture of the Credit Cards Reader
Your Total cost is 6 990 000$ on the entire Lot
Our procedure
• PO
• Inspect
• PAY
Please see attached ZIP file for a full breakdown, technical details, and linked datasheets.
________________________________________
Available Inventory
• BTC Dispenser V1.0
• PN: HPCD5-125-05-000
• Qty: 284 units
• BTC Dispenser V2.0
• PN: HPCD5-200-05-000
• Qty: 185 units
• BTC Power Cabinet (50 kW)
• PN: HPCT-50-480-2
• Qty: 171 units
• BTC Power Cabinet (100 kW)
• PN: HPCT-100-480-2
• Qty: 95 units
• BTC Power Cabinet (180 kW)
• PN: HPCT2-180-480-2
• Qty: 110 units
Total Available: 845 units
________________________________________
Technical Specifications
BTC Dispenser V1.0 – HPCD5-125-05-000 (Gen1)
• Output Voltage: 200–920 VDC
• Max Output Current: 125 A
• Max Output Power: ~50 kW
• Input (aux): 240/120 VAC, 1-phase, 12 A
• Ambient: –30 °C to +50 °C
• Enclosure: NEMA 3R, ETL certified
• Cable: CCS1 output cable, standard air-cooled, ~10 ft length

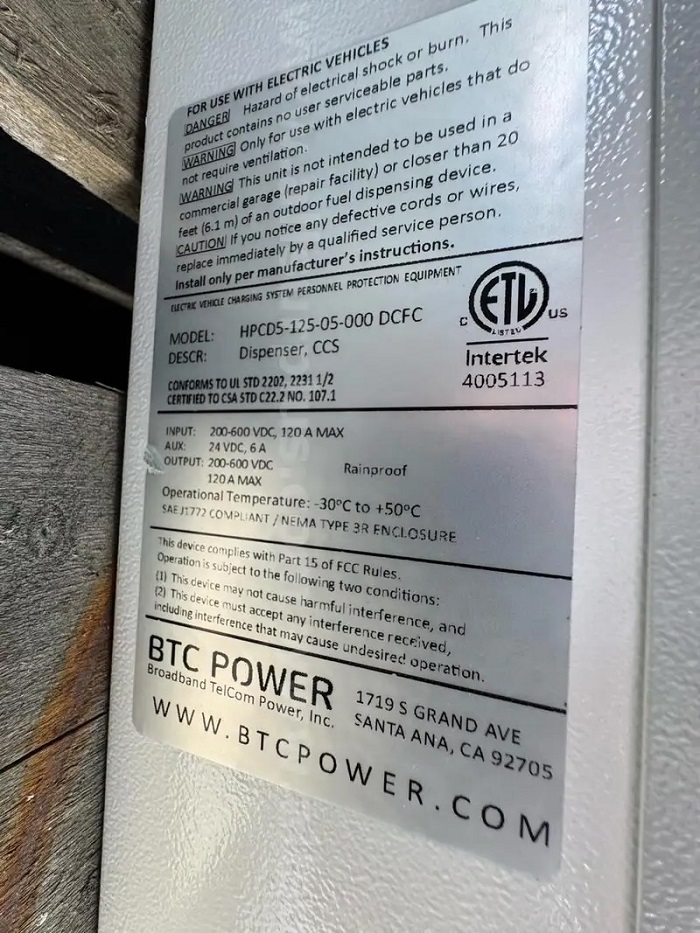

• Nameplate Photo Attached (HPCD5-125-05-000 DCFC.jpg)
BTC Dispenser V2.0 – HPCD5-200-05-000 (Gen2)
• Output Voltage: up to 950 VDC
• Max Output Current: 200 A
• Max Output Power: 190 kW
• Connector: CCS
• Input: 480 VAC, 3-phase
• Network: Ethernet, Wi-Fi, Cellular
• Efficiency: 95%
• Certified: ENERGY STAR (Nov 2024)
• Cable: CCS1 output cable, heavy-gauge, ~10 ft length (ENERGY STAR listing confirms 4/0 AWG cord, 10 ft)
• ENERGY STAR Datasheet Attached (BTCPowerHPCD520005000-2025-09-24.pdf)
BTC Power Cabinet – HPCT-50-480-2 (Gen3)
• Power Rating: 50 kW
• Input: 480 VAC, 3-phase
• Output Voltage: up to 950 VDC
• Family: Modular HPC (100–350 kW spec family)
• BTC Gen3 Modular HPC Datasheet Attached (100-350kW-HP-Datasheet.pdf)
BTC Power Cabinet – HPCT-100-480-2 (Gen3)
• Power Rating: 100 kW
• Input: 480 VAC, 3-phase
• Max Output Current: up to ~108 A at 920 VDC, ~250 A at 500 VDC
• Dimensions: 42" W × 35" D × 82" H, ~1,900 lbs
• BTC Gen3 Modular HPC Datasheet Attached (100-350kW-HP-Datasheet.pdf)
BTC Power Cabinet – HPCT2-180-480-2 (Gen2/Gen4 Split System)
• Power Rating: 180 kW (family scales to 240 kW / 360 kW)
• Input: 480 VAC, 3-phase, 239 A (180 kW)
• Output Voltage: 200–950 VDC
• Max Output Current: up to 500 A per channel
• Efficiency: >94%
• Dimensions: 30" W × 34.5" D × 93" H, ~1,655 lbs
• BTC Gen2 Dispenser/HPCT2 Cabinet Datasheet Attached (360_Gen2Disp_SpecSheet.pdf)
• BTC 360 kW Gen2 Split System Datasheet Attached (BTC-Power-GEN4-360kW-Split.pdf)
________________________________________
Environmental & Compliance
• All units rated for –30 °C to +50 °C operation, NEMA 3R outdoor enclosures.
• Certified to UL 2202, UL 2231, FCC Part 15 Class A, CSA standards (see datasheets for details).
• ENERGY STAR Certified where applicable.
FOB: LV, USA
If you are interested in buying this stock offer or you have any questions feel free to contact us.
